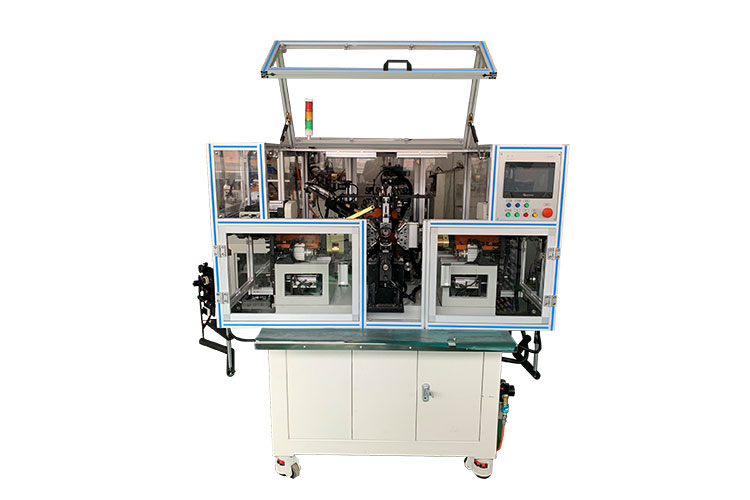

Rotor Hook Type High Slot Full Rate Winding Machine Single Machine

SHUAIRUI® Rotor Hook Type High Slot Full Rate Winding Machine Single Machine

Equipment introduction:

1.This machine is used for the winding process of the rotor.

2.Equipment stand-alone operation or equipment stand-alone operation is simple and easy to operate.

3.Automatically complete the functions of winding, hooking, clamping, tearing and other functions.

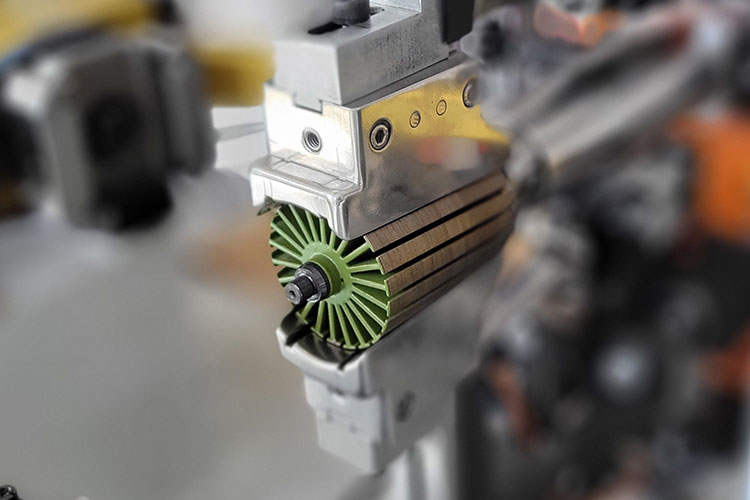

4.Adopt servo shaping and double-flying fork winding mechanism.

5.Applies to even-numbered products.

6.It can improve the winding full slot ratio of the rotor.

7.Make the winding more compact.

8.It ensures the quality of the winding and the quality of the rotor.

9.Rotor outer diameter: φ26-φ65

10.Rotor stack thickness: 35-80mm

11.Wire diameter: φ0.2－φ1.0mm

12.Working air pressure: 0.5-0.7MPa.

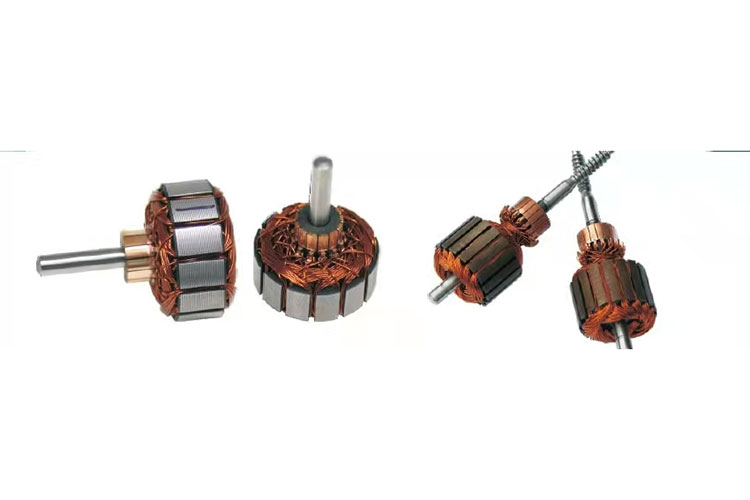

13.Application areas: electric tool rotors, garden tool rotors, automotive condenser fan rotors, blower motor rotors, electric forklift motor rotors, EPS motor rotors and other fields.
