What is the process for manufacturing a high-precision and easy-to-use rotor winding machine?

What is the process of manufacturing a high-precision and easy-to-use rotor winding machine? First, it is necessary to have a high-standard assembly process and in-process inspection.

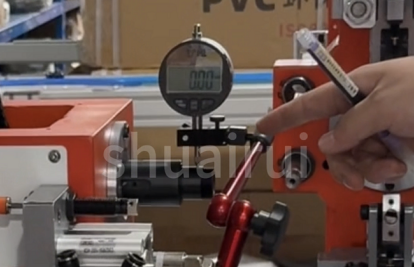

1. Verify the perpendicularity between the rotary shaft and the main shaft

Calibrate the spindle with the rotary axis perpendicular reference to ensure precise rotor positioning.

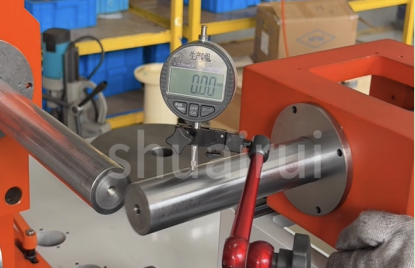

2.Check the spindle level

Accurately align the spindle horizontally to eliminate high-speed vibration, making the equipment run more smoothly.

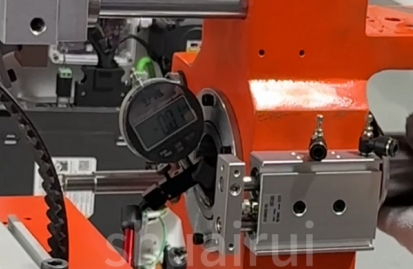

3. Check the spindle runout of the flying fork

Strictly control the rotation and bobbing of the fly fork, no shaking during high-speed winding, and keep the wiring even.

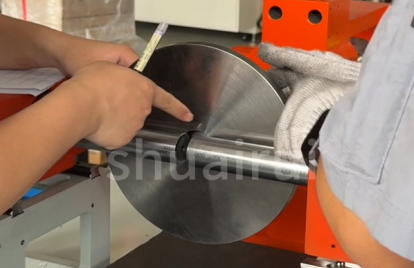

4. Check for shaft runout

Ensures the rotor indexing is precise, and the winding positions on the whole machine are consistent.

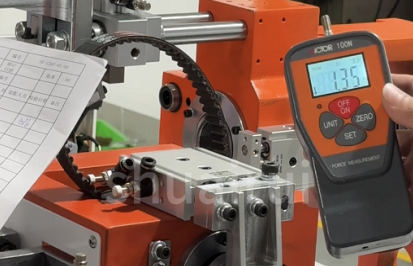

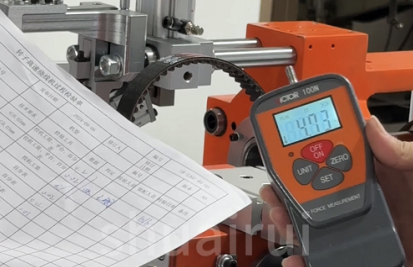

5. Using a force gauge to check the clamping cylinder's push

Quantify and calibrate the clamping force, keeping the pressure balanced and stable.

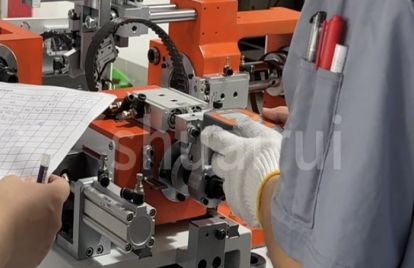

6. Using a force gauge to check the cylinder thrust of the cap hook

Precisely adjust the cylinder output to ensure the equipment runs smoothly and accurately.

Check everything one by one and strictly control the accuracy of every piece of equipment.
